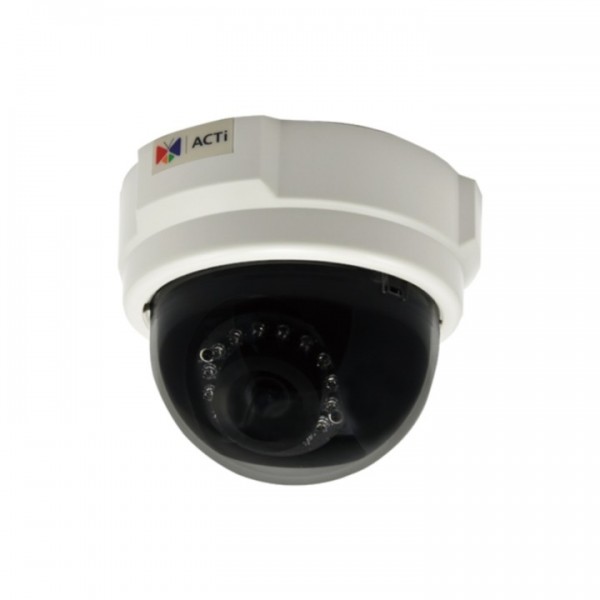

Camera de supraveghere E62, IP, interior, 3MP, IR, dome
Product Type
| Dome | |
|
Maximum Resolution
|
3MP |
|
Application Environment
|
Indoor |
|
Image Sensor
|
Progressive Scan CMOS |
|
Sensor Size
|
1/3.2 " |
|
Effective Pixels
|
2592(H) X 1944(V) (5.04 MP) |
|
Day / Night
|
Yes |
|
Low Light Sensitivity
|
Standard |
|
Minimum Illumination
|
Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on) |
|
Color to B/W Switch
|
ISP based switch, configurable |
|
Mechanical IR Cut Filter
|
Yes |
|
IR Sensitivity Range
|
700-1100nm |
|
IR LED
|
Adaptive IR LED x 15 (850 nm) |
|
IR Working Distance
|
15m (0 lux, 30IRE, Gain 255, Auto shutter mode) |
|
Electronic Shutter
|
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
|
Horizontal Resolution (TV Lines)
|
1350 TVL |
|
S/N Ratio
|
52 dB |
 |
|
|
Focal Length
|
Vari-focal, f2.8-12mm |
|
Aperture
|
F1.4 |
|
Iris
|
Fixed iris |
|
Focus
|
Manual focus |
|
Lens Mount
|
Board mount |
|
Horizontal Viewing Angle
|
70.5° - 28.2° |
|
Vertical Viewing Angle
|
38.5° - 15.5° |
|
Viewing Angle Adjustment
|
Pan: 0°-350°, Tilt: 17°-163°, Rotation: 0°-350° |
|
|
|
Compression
|
H.264 (Baseline/ Main/ High profile), MJPEG |
|
Maximum Frame Rate vs. Resolution
|
15 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
|
Multi-Streaming
|
Simultaneous dual streams based on two configurations |
|
Bit Rate
|
28Kbps - 6Mbps (per stream) |
|
Bit Rate Mode
|
Constant, Variable |
|
Wide Dynamic Range
|
Basic WDR (74 dB) |
|
Image Enhancement
|
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
|
Digital Noise Reduction
|
DNR |
|
Privacy Mask
|
4 configurable regions |
|
Text Overlay
|
Yes |
|
VMS-based Analytics
|
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
|
Image Orientation
|
Flip, Mirror |
|
|
|
Network Protocol & Service
|
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
|
Ethernet Port
|
1, Ethernet (10/100 Base-T), RJ-45 connector |
|
Security
|
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
|
|
|
Event Trigger
|
Video motion detection (3 regions) |
|
Event Response
|
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server |
|
|
|
Unified Solution
|
Fully compatible with ACTi software |
|
Software Development Kit
|
Yes |
|
GPS Position
|
Manual setting |
|
ONVIF Compliant
|
Yes, Profile S, Profile G |
|
GB28181 Compliant
|
Yes |
|
Web Browser
|
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
|
Auto Firmware Upgrade
|
Yes |
|
|
|
Local Storage
|
MicroSDHC, MicroSDXC memory card slot (card not included) |
|
|
|
Power Source
|
PoE Class 2 (IEEE802.3af) |
|
Power Consumption
|
5.18 W (PoE, IR on) |
|
Weight
|
503g (1.11lb) |
|
Dimensions
|
(Ø x H): 146mm x 113.9mm (5.8" x 4.5") |
|
Environmental Casing
|
Vandal resistant (IK09) |
|
Mount Type
|
Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
|
Starting Temperature
|
-10°C ~ 50°C (14°F ~ 122°F) |
|
Operating Temperature
|
-10°C ~ 50°C (14°F ~ 122°F) |
* Nu contine suport in pachet.
* Produs second-hand.
