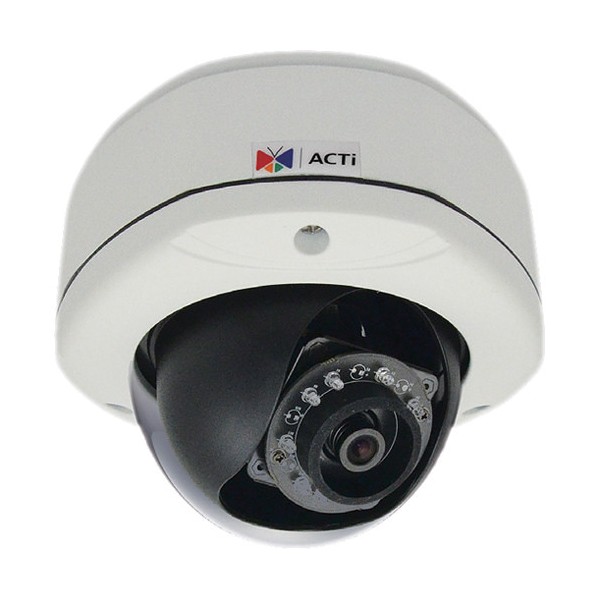

Camera de supraveghere D82A, IP, exterior, IR, 3MP, dome
Vezi imaginea marita
- Elimină acest produs din lista mea de favorite.
- Adaugă acest produs la lista mea de favorite.
- Trimite unui prieten
- Tipăreşte
Camera de supraveghere D82A, IP, exterior, IR, 3MP, dome
Product Type
| Dome | |
|
Maximum Resolution
|
3MP |
|
Application Environment
|
Outdoor |
|
Image Sensor
|
Progressive Scan CMOS |
|
Sensor Size
|
1/3.2 " |
|
Effective Pixels
|
2592(H) X 1944(V) (5.04 MP) |
|
Day / Night
|
Yes |
|
Low Light Sensitivity
|
Standard |
|
Minimum Illumination
|
Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on) |
|
Color to B/W Switch
|
ISP based switch, configurable |
|
Mechanical IR Cut Filter
|
Yes |
|
IR Sensitivity Range
|
700-1100nm |
|
IR LED
|
Adaptive IR LED x 15 (850 nm) |
|
IR Working Distance
|
30m (0 lux, 30IRE, Gain 255, Auto shutter mode) |
|
Electronic Shutter
|
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
|
Horizontal Resolution (TV Lines)
|
1350 TVL |
|
S/N Ratio
|
52 dB |
 |
|
|
Focal Length
|
Vari-focal, f2.8-12mm |
|
Aperture
|
F1.4 |
|
Iris
|
Fixed iris |
|
Focus
|
Manual focus |
|
Lens Mount
|
Board mount |
|
Horizontal Viewing Angle
|
70.5° - 28.2° |
|
Vertical Viewing Angle
|
38.5° - 15.5° |
|
Viewing Angle Adjustment
|
Pan: 0°-350°, Tilt: 17°-163°, Rotation: 0°-350° |
|
|
|
Compression
|
H.264 (Baseline/ Main/ High profile), MJPEG |
|
Maximum Frame Rate vs. Resolution
|
15 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
|
Multi-Streaming
|
Simultaneous dual streams based on two configurations |
|
Bit Rate
|
28Kbps - 6Mbps (per stream) |
|
Bit Rate Mode
|
Constant, Variable |
|
Image Enhancement
|
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
|
Digital Noise Reduction
|
DNR |
|
Privacy Mask
|
4 configurable regions |
|
Text Overlay
|
Yes |
|
VMS-based Analytics
|
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
|
Image Orientation
|
Flip, Mirror |
|
|
|
Audio Type
|
2-way, Line-in, Line-out |
|
Audio Compression
|
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
|
|
|
Network Protocol & Service
|
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
|
Ethernet Port
|
1 x RJ-45 connector |
|
Security
|
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
|
|
|
Event Trigger
|
Video motion detection (3 regions), External device through digital input, Sound detection |
|
Event Response
|
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output |
|
|
|
Unified Solution
|
Fully compatible with ACTi software |
|
Software Development Kit
|
Yes |
|
GPS Position
|
Manual setting |
|
ONVIF Compliant
|
Yes, Profile S, Profile G |
|
GB28181 Compliant
|
Yes |
|
Web Browser
|
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
|
Auto Firmware Upgrade
|
Yes |
|
|
|
Audio Interface
|
Terminal block |
|
Local Storage
|
MicroSDHC, MicroSDXC memory card slot (card not included) |
|
Digital Input/Output
|
1/1 |
|
|
|
Power Source
|
PoE Class 2 (IEEE802.3af) |
|
Power Consumption
|
6.49 W (PoE, IR on) |
|
Weight
|
1032g (2.275lb) |
|
Dimensions
|
(Ø x H): 150mm x 117mm (5.9" x 4.6") |
|
Environmental Casing
|
Weatherproof (IP67), Vandal proof (IK10) |
|
Mount Type
|
Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
|
Starting Temperature
|
-20°C ~ 50°C (-4°F ~ 122°F) |
|
Operating Temperature
|
-40°C ~ 50°C (-40°F ~ 122°F) |
|
Operating Humidity
|
10% - 85% RH |
* Nu contine suport in pachet.
* Produs second-hand.
