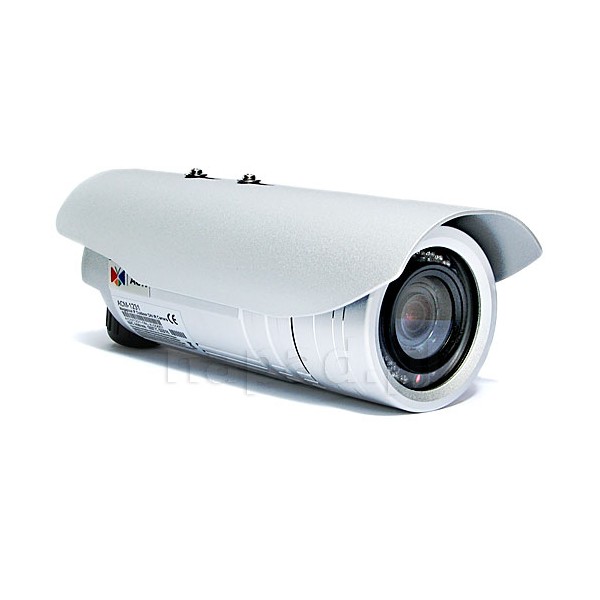

Camera de supraveghere ACM-1231 IP, IR, 1,3MP, exterior, dome
Vezi imaginea marita
- Elimină acest produs din lista mea de favorite.
- Adaugă acest produs la lista mea de favorite.
- Trimite unui prieten
- Tipăreşte
Camera de supraveghere ACM-1231 IP, IR, 1,3MP, exterior, dome
Product Type
| Bullet | |
|
Maximum Resolution
|
1.3MP |
|
Application Environment
|
Outdoor |
|
Image Sensor
|
Progressive Scan CMOS |
|
Sensor Size
|
1/3 " |
|
Day / Night
|
Yes |
|
Low Light Sensitivity
|
Standard |
|
Minimum Illumination
|
Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0 lux at F1.0 (IR LED on) |
|
Color to B/W Switch
|
CDS sensor based switch |
|
Mechanical IR Cut Filter
|
Yes |
|
IR Sensitivity Range
|
700-1100nm |
|
IR LED
|
IR LED |
|
IR Working Distance
|
20-30m (30 IRE) |
|
Electronic Shutter
|
1/30-1/1000sec (manual mode); 1/5-1/15000sec (auto mode) |
|
S/N Ratio
|
44 dB |
 |
|
|
Focal Length
|
Vari-focal, f3.3-12mm |
|
Aperture
|
F1.6 |
|
Iris
|
Fixed iris |
|
Focus
|
Manual focus |
|
Lens Mount
|
Board mount |
|
Horizontal Viewing Angle
|
85.9° - 23.1° |
|
|
|
Compression
|
MPEG-4 SP, MJPEG |
|
Maximum Frame Rate vs. Resolution
|
8 fps at 1280 x 1024 10 fps at 1280 x 720 30 fps at 640 x 480 |
|
Multi-Streaming
|
Multiple streams based on a single configuration |
|
Bit Rate
|
28Kbps - 3Mbps (per stream) |
|
Bit Rate Mode
|
Constant, Variable |
|
Image Enhancement
|
White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Automatic exposure, Flickerless |
|
Digital Noise Reduction
|
No |
|
Privacy Mask
|
1 configurable regions |
|
Text Overlay
|
Yes |
|
VMS-based Analytics
|
Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
|
|
|
Audio Type
|
2-way, Line-in, Line-out |
|
Audio Compression
|
8 kHz, 16 bit encoding, Mono, PCM |
|
|
|
Network Protocol & Service
|
IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
|
Ethernet Port
|
1, Ethernet (10/100 Base-T), RJ-45 connector |
|
Security
|
Anonymous login, HTTPS encryption, IEEE 802.1X network access control, IP address filtering, Password protected user level |
|
|
|
Event Trigger
|
Video motion detection (3 regions) |
|
Event Response
|
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server |
|
|
|
Unified Solution
|
Fully compatible with ACTi software |
|
Web Browser
|
IE 8.0 or newer |
|
|
|
Audio Interface
|
Terminal block |
|
|
|
Power Source
|
PoE Class 3 (IEEE802.3af), DC 12V (adapter not included) |
|
Power Consumption
|
6.24 W (PoE, IR on), 6 W (DC, IR on) |
|
Weight
|
685g (1.51lb) |
|
Dimensions
|
(Ø x L): 77mm x 220mm (3.03" x 8.66") |
|
Environmental Casing
|
Weatherproof (IP66) |
|
Mount Type
|
Wall Mount, Corner Mount, Pole Mount, Ceiling Bracket |
|
Starting Temperature
|
-20°C ~ 50°C (-4°F ~ 122°F) |
|
Operating Temperature
|
-20°C ~ 50°C (-4°F ~ 122°F) |
|
Operating Humidity
|
10% - 85% RH |
|
Approvals
|
CE, FCC, IP66 |
* Nu contine suport in pachet.
* Produs second-hand.
